Servo Press

The servo press is used to assemble automotive steering components.  A total of four similar machines were produced all with unique tooling but performing similar operations.  The insert has two holes for mounting to the chassis, close examination would reveal that one of the mounting holes is round and the other is slotted.  The operator is responsible to place the component with the oval down for assembly.  Furthermore, between the four machines the hole and slot sizes vary and must be verified at assembly.  Dual through beam lasers were deployed on each machine to allow measurement of the hole and slot as well as establishing final positioning of the component during assembly.
As the parts are assembled, a minimum and maximum assembly force must be maintained and is monitored in real time by the plc with data supplied from the servo controller.  As the press descends, the lasers find the hole edges and record the position based on the servo feedback.  Those numbers are used to determine if the proper components were used based on the hole size and location compared to each other.  Assemblies outside the preset parameters are "trapped" in the machine by the assembly head remaining in the down position until a supervisor with a "release" code authorizes the press to open thereby releasing the part.
The controls system consists of a Mitsubishi Q Series Processor, Mitsubishi GOT graphic interface, and an MR-J2S servo control.  It operates on 30a of 480vac and compressed air.

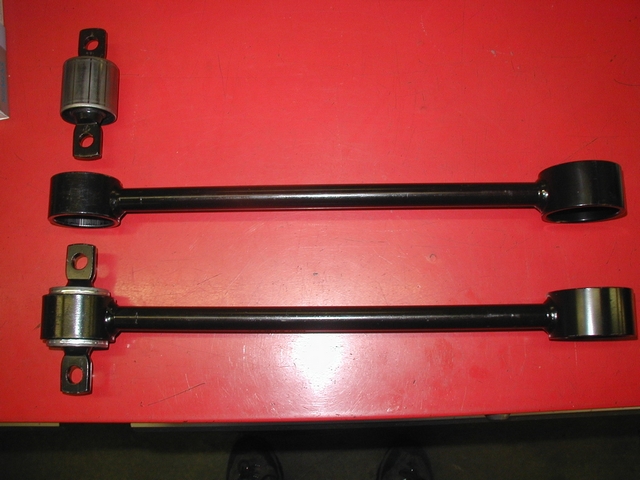

Servo Press Parts 640x480.JPG
Servo press components

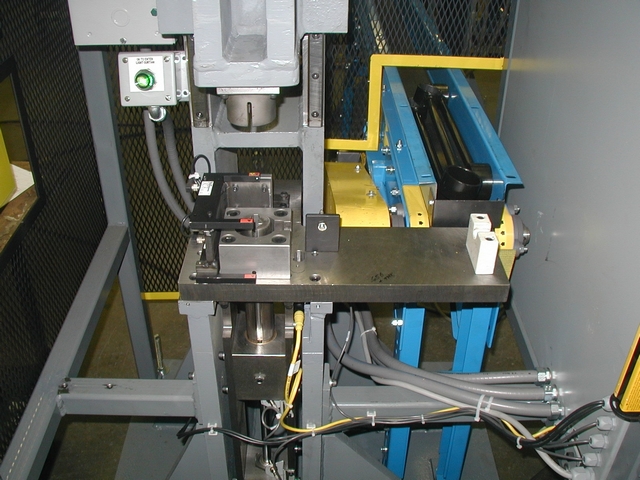

Servo Press Empty Fixture 640x480.JPG

Servo press with laser measurement

Servo Press Bar Loaded 640x480.jpg

Servo press with bar loaded

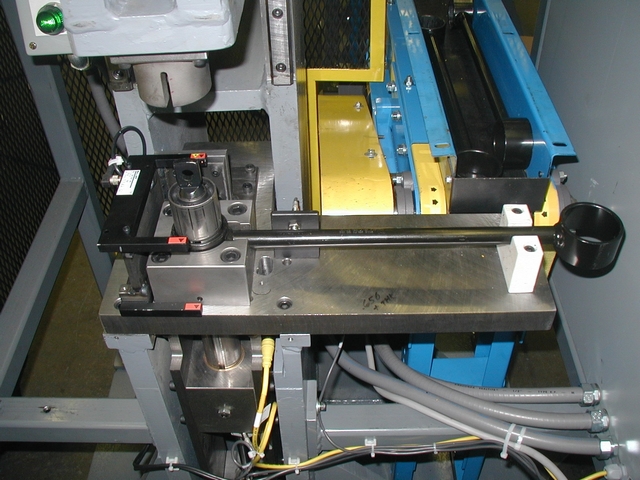

Servo Press Both Parts Loaded 640x480.jpg

Servo press with bar and hub loaded

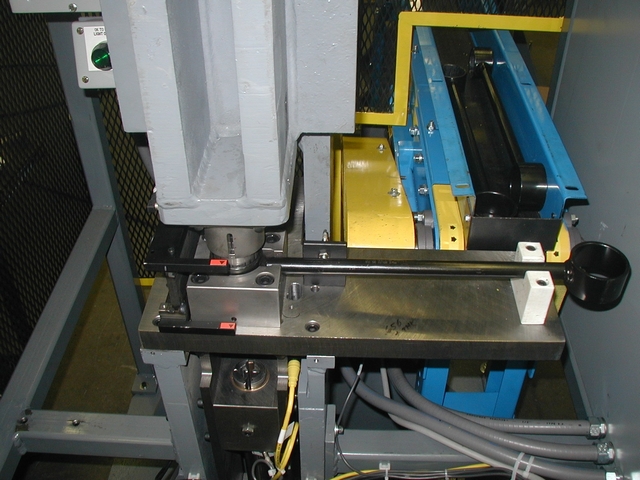

Servo Press operating 640x480.JPG

Servo press in operation

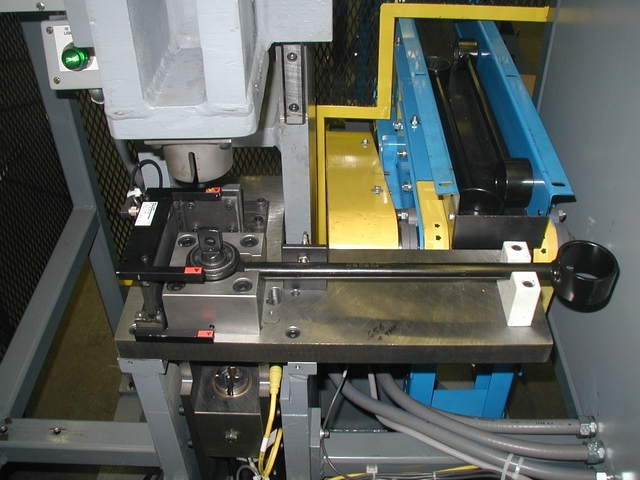

Servo Press complete 640x480.JPG

Servo press complete
