Hot Stamp

This machine uses four independent stamp heads to apply white lettering to a plastic container.  Each of the heads are independently adjustable in the field for temperature, time, and pressure.  The heat tape is advanced using a DC motor that is field adjustable for wind time and speed.  There is a head on both the right and left sides and two heads from the back.  The two heads in the back are mounted on a common preposition slide to provide clearance for loading and unloading the part.
The operator loads the part and activates the two hand start buttons starting the machine cycle.  Once all the heads advance the operator may release the start buttons and the cycle will continue.  After the programmed dwell time, each head will retract and the tape feeds will advance.  The operator manually unloads the finished product and the cycle is ready to be restarted.
The system is controlled by an Allen Bradley processor, a Banner two hand start module, Wattlow heat controls, and SMC pneumatic control valves.  The system operates on 120vac and can be plugged into standard wall outlet.

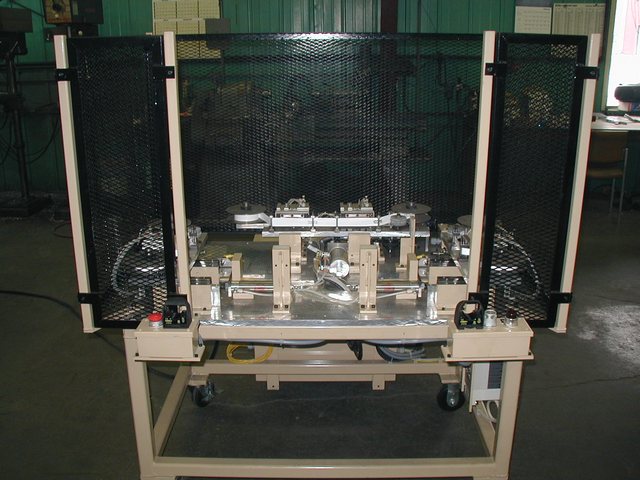

Hot Stamp Front 640x480.JPG

Front View

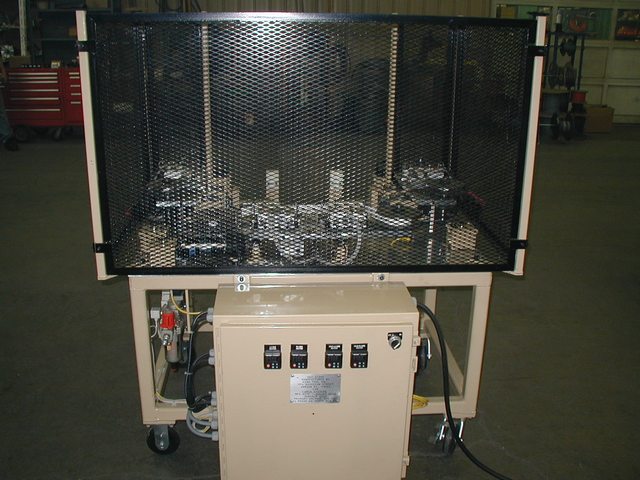

Hot Stamp Rear 640x480.JPG

Rear View

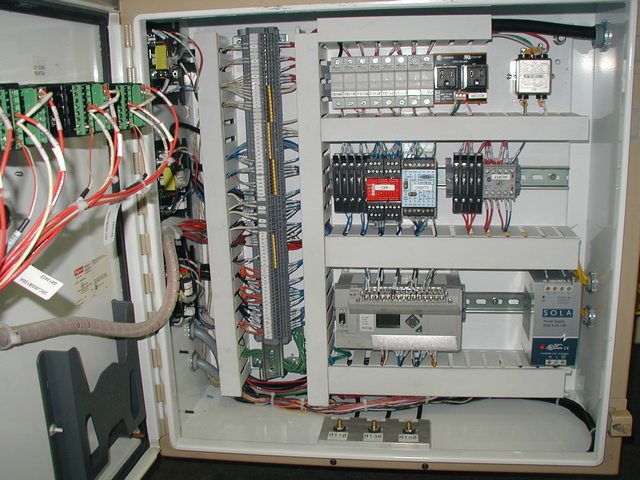

Hot Stamp Enclosure 2 640x480.JPG

Control Enclosure

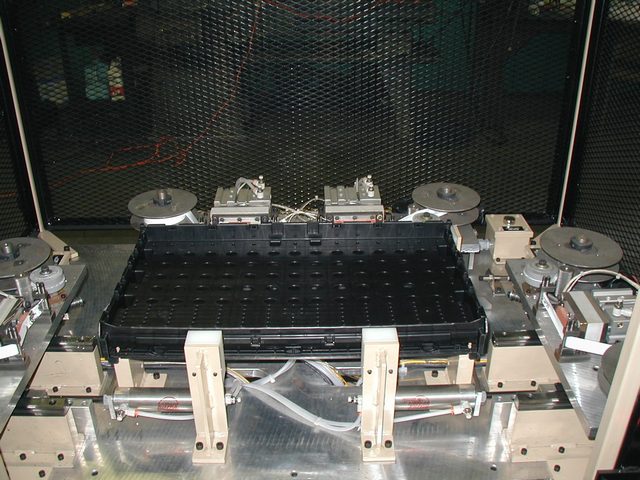

Hot Stamp Front With Part 640x480.JPG

Front View with Part Loaded

Hot Stamp Rear Part Before 640x480.jpg

Rear View Before Stamp

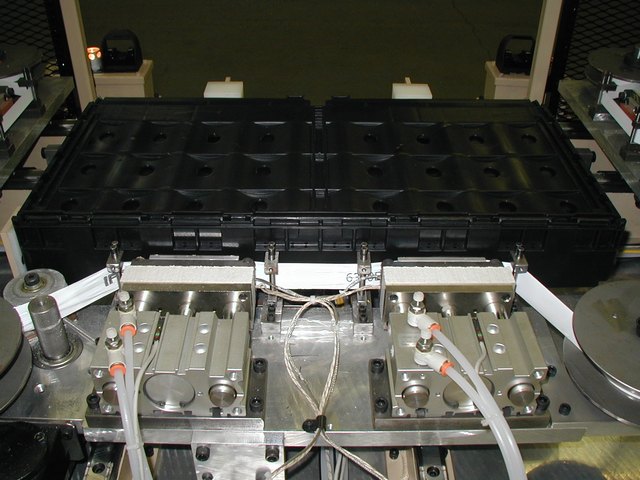

Hot Stamp Rear Part During 640x480.jpg

Rear View During Stamp

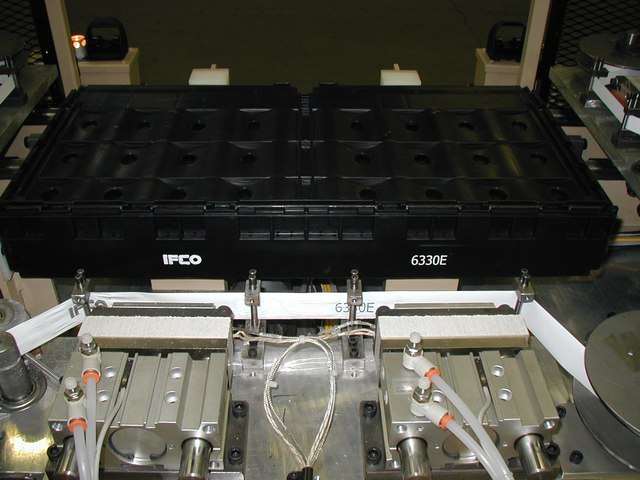

Hot Stamp Rear Part After 640x480.jpg

Rear View After Stamp

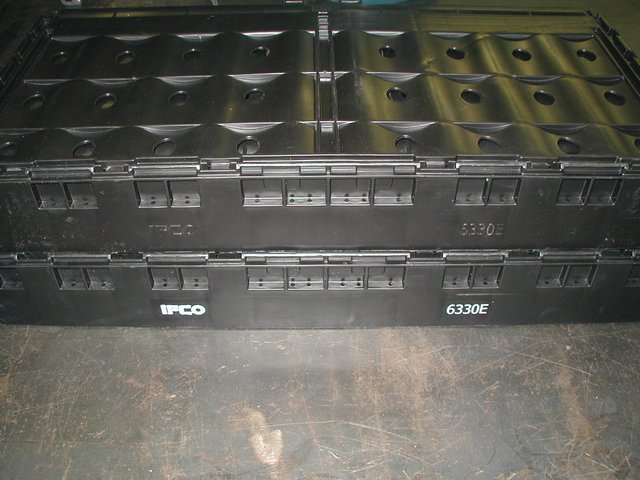

Hot Stamp Parts Before and After 640x480.jpg

Part View Before and after Stamp
